Specification

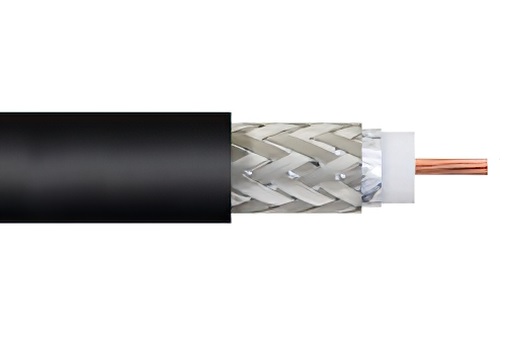

RG58 Specifications
| Construction Specifications | ||
| Description | Material | Size (mm) |
| Inner Conductor | Stranded Bare Copper (7 Strands) | 0.90mm |
| Dielectric | Foam PE | 2.95mm |
| Outer Conductor | Aluminium Tape | 3.10mm |
| Outer Braid | Tinned Copper | 96*0.12mm |
| Jacket | LSZH | 5.00mm |
| Electrical Specifications | ||
| Description | Unit | Value |
| Impedance | ohms | 50 |
| Capacitance | pF/m | 100±5 |
| Velocity of Propagation | % | 66 |
| Max Voltage | VMS | 1,500 |
| Max Frequency | MHz | 3,000 |
| Temperature Range |
| -20/+80C |
| Mechanical Specifications | ||
| Performance Property | Value | Unit |
| Bend Radius (Installation) | 24.89 | Mm |
| Bend Radius (Repeated) | 49.78 | Mm |
| Weight | 0.04 | Kg/m |
| Diameter | 0.195 | Inches |
| Diameter | 4.95 | mm |
| Attenuation vs Frequency | ||
| Frequency MHz | Attenuation | Unit |
| 150 | 17.4 | dB/100m |
| 200 | 20.1 | dB/100m |
| 220 | 21.1 | dB/100m |
| 450 | 30.5 | dB/100m |
| 1500 | 56.7 | dB/100m |
| 2000 | 66.0 | dB/100m |
| 3000 | 81.8 | dB/100m |
