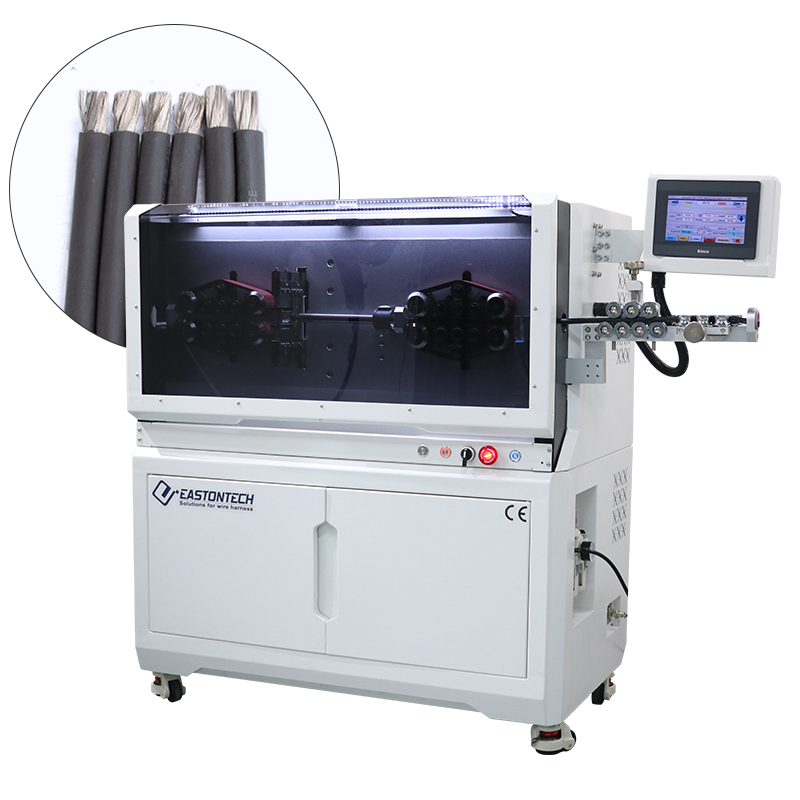

| Model | EW-05H | EW-05H+ |
| Conductor cross-section | 2.5 – 120 mm² | 2.5 – 120 mm² |
| Core wire stripping | N/A | 2 – 10 cores |
| Cutting length | 1 – 99999.9 mm | 1 – 99999.9 mm |
| Cutting length tolerance | < 0.002 * L (L = cutting length) | < 0.002 * L (L = cutting length) |
| Stripping length (side I) |
– Full strip: 1 – 300 mm – Half strip: 1 – 1000 mm
|
Cable jacket
– Full strip: 20 – 250 mm
Core wire – Full strip: 1 – 50 mm |
| Stripping length (side II) |
– Full strip: 1 – 150 mm – Half strip: 1 – 500 mm
|
Cable jacket
– Full strip: 20 – 200 mm
Core wire – Full strip: 1 – 50 mm
|
| Maximum guide tube diameter | 30 mm | 27mm |
| Productivity | 2000 pcs./h | 2000 pcs./h |
| Blade material | Imported high speed steel | Imported high speed steel |
| Display mode | 7-inch touch screen | 7-inch touch screen |
| Driving mode | 24-wheel driving, servo tool holder | 24-wheel driving, servo tool holder |
| Feeding mode | By belts | By belts |
| Power supply | 110, 220 V (50 – 60 Hz) | 110, 220 V (50 – 60 Hz) |
| Power | 2.25 kW | 1.85 kW |
| Compressed air connection | 0.5 – 0.7 MPa | 0.5 – 0.7 MPa |
| Weight | 260 kg | 260 kg |
| Dimension | 1020 * 590 * 1140 mm | 1020 * 590 * 1140 mm |
| Remarks | Custom options in accordance with samples | |
