Specification

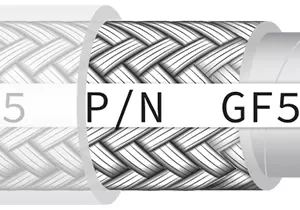

RG218 Coaxial Cable Specifications
| Construction Specifications | ||
| Description | Material | Size (mm) |
| 1. Inner Conductor | Bare Copper | 4.95mm |
| 2. Dielectric | Solid PE | 17.27mm |
| 3. Outer Conductor | Bare Copper Braid | 18.50mm |
| 4. Jacket | Black PVC | 22.10mm |
| Electrical Specifications | ||
| Description | Unit | Value |
| Impedance | ohms | 50 |
| Capacitance | pF/m | 101 |
| Velocity of Propagation | % | 66 |
| Voltage Withstand | V, DC | >10,000 |
| Max Frequency | MHz | 1,000 |
| Mechanical & Environmental Specifications | ||
| Description | Unit | Value |
| Bend Radius: Installation | 110.5 | mm |
| Bend Radius: Repeated | 442 | mm |
| Operating Temp | -20/+70 | ° C |
| Storage Temp | 20/+70 | ° C |
| Certification | 2011/65/EU RoHS | |
| Attenuation vs Frequency (@20C) | ||
| Frequency MHz | Attenuation (db/100m) | Average Power (KW) |
| 50 | 11.6 | 6.50 |
| 100 | 16.8 | 3.70 |
| 400 | 25.9 | 1.20 |
| 1000 | 37.2 | 0.60 |
