Specification
Outer Jacket

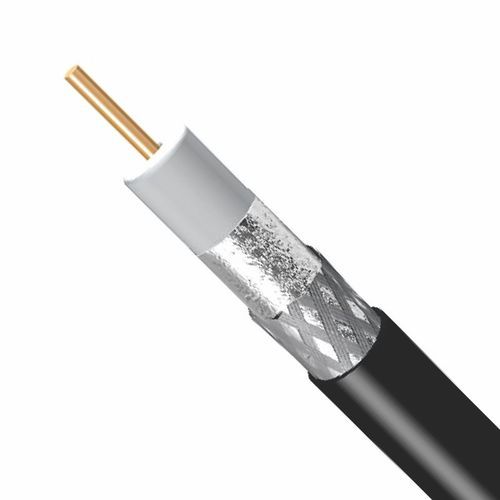

The RG59 coaxial cable comes with a PVC Jacket. This contributes towards the cable offering good flexibility for ease of installation.
Frequency Operating Band
RG59 is designed to operate excellent from DC – 1GHz.
RG59 Flexible Low Loss Communications Coaxial Cable is ideal for:
- Satellite Applications
- VSAT applications
- Video applications such as CCTV, CATV, baseband or broadband
- In-Building Feeder Runs
- Any 75-ohm Wireless Application requiring an easily routed low loss RF cable
| Construction Specifications | ||
| Description | Material | Size |
| Inner Conductor | Bare Copper | 0.81mm |
| Dielectric | Foam PE | 3.70mm |
| Outer Conductor | Aluminium Foil | 3.80mm |
| Wire Braid | Tinned Copper | 128*0.12mm |
| Jacket | PVC | 6.10mm |
| Electrical Specifications | ||
| Description | Unit | Value |
| Impedance | ohms | 75 |
| Capacitance | pF/m | 54 |
| Velocity of Propagation | % | 80 |
| Max Voltage | VMS | 3,000 |
| Max Frequency | MHz | 1,000 |
| Temperature Range |
| -20/+80C |
| Mechanical Specifications | ||
| Performance Property | Value | Unit |
| Bend Radius (Installation) | 30 | mm |
| Weight | 0.06 | Kg/m |
| Diameter | 0.24 | Inches |
| Diameter | 6.10 | mm |
| Attenuation vs Frequency | ||
| Frequency MHz | Attenuation | Unit |
| 50 | 6.7 | dB/100m |
| 200 | 12.4 | dB/100m |
| 400 | 16.8 | dB/100m |
| 550 | 19.6 | dB/100m |
| 750 | 22.9 | dB/100m |
| 850 | 24.8 | dB/100m |
| 1000 | 26.7 | dB/100m |
